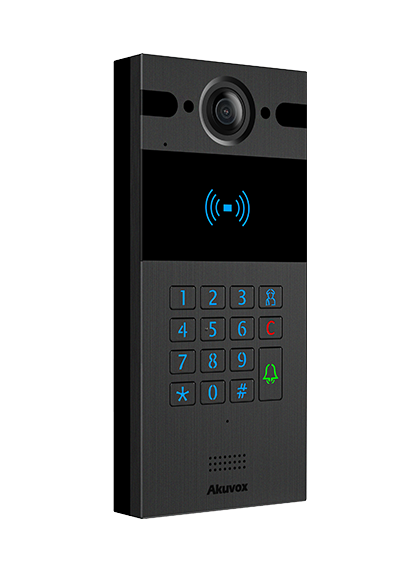

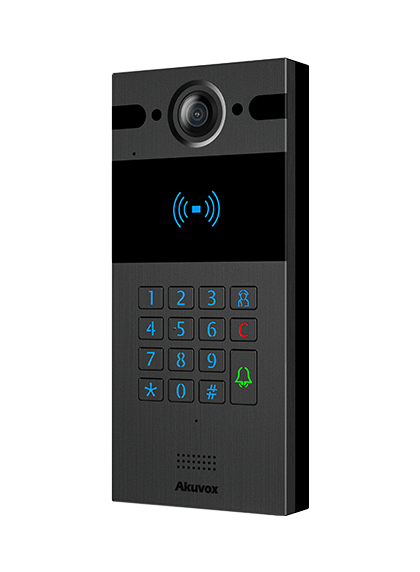

R25K Video Door Phone

R25K Ultra Wide-angle Video Door Phone

Featuring a high-resolution camera with WDR, an ultra wide-angle coverage, IP65-rated protection, as well as multiple access methods, R25K door phone delivers a secure, flexible, and stylish door entry experience.

R25K <span>Video Door Phone</span> - Image 2
R25K <span>Video Door Phone</span> - Image 4

Description



Additional information

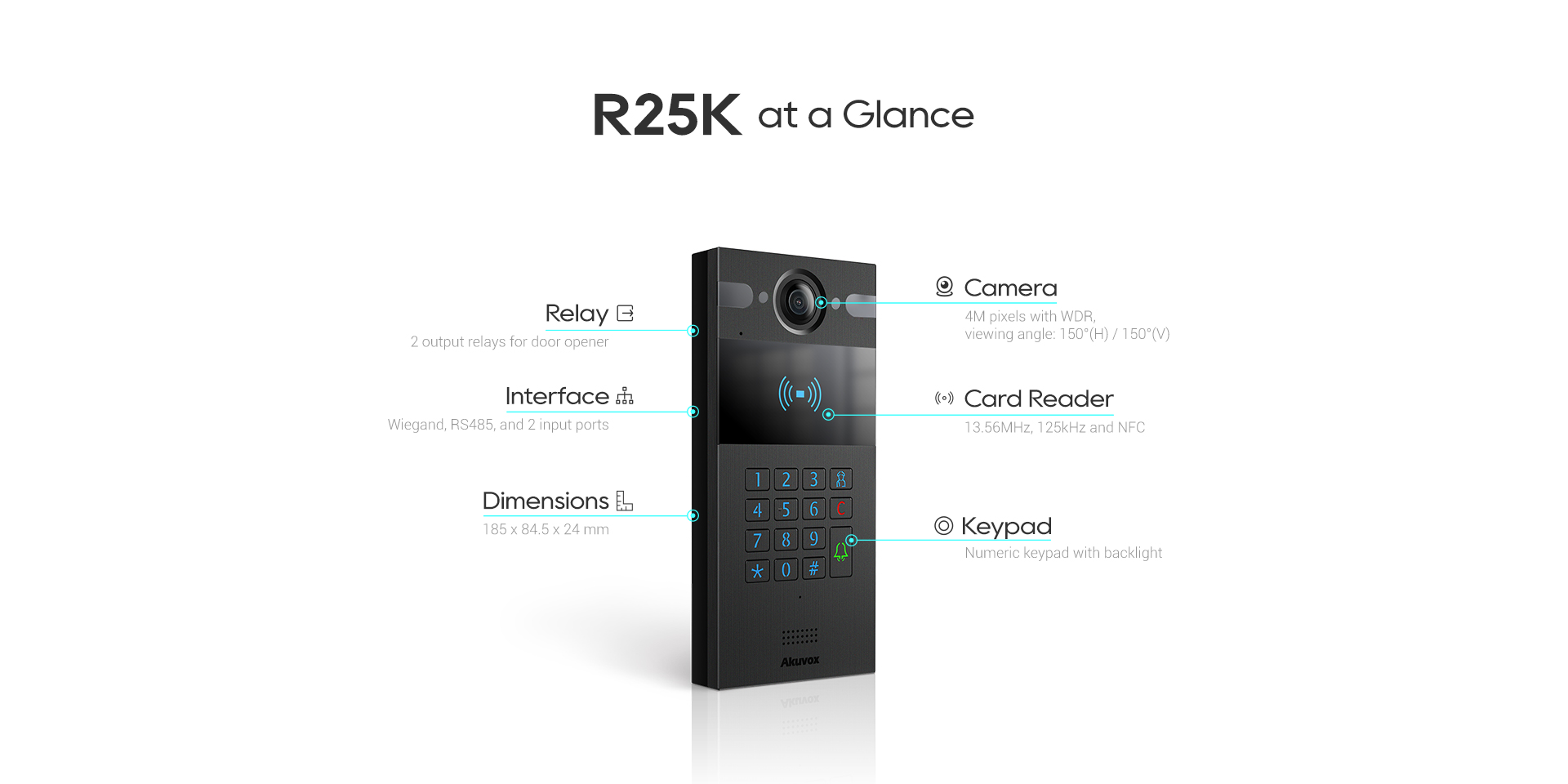

Physical & Power

Front panel: Aluminum

Camera: 4M pixels, automatic lighting

Light sensor: Support

Infrared sensor: Support

Wiegand port: 1ch input/output(selectable)

RS485 port: Support

RF card reader: 13.56MHz&125kHz, NFC (only Android)

Relays out: 2

Relays inputs: 2

Microphone: 1

Speaker: 1

Ethernet port: RJ45, 10/100Mbps adaptive

802.3at Power-over-Ethernet

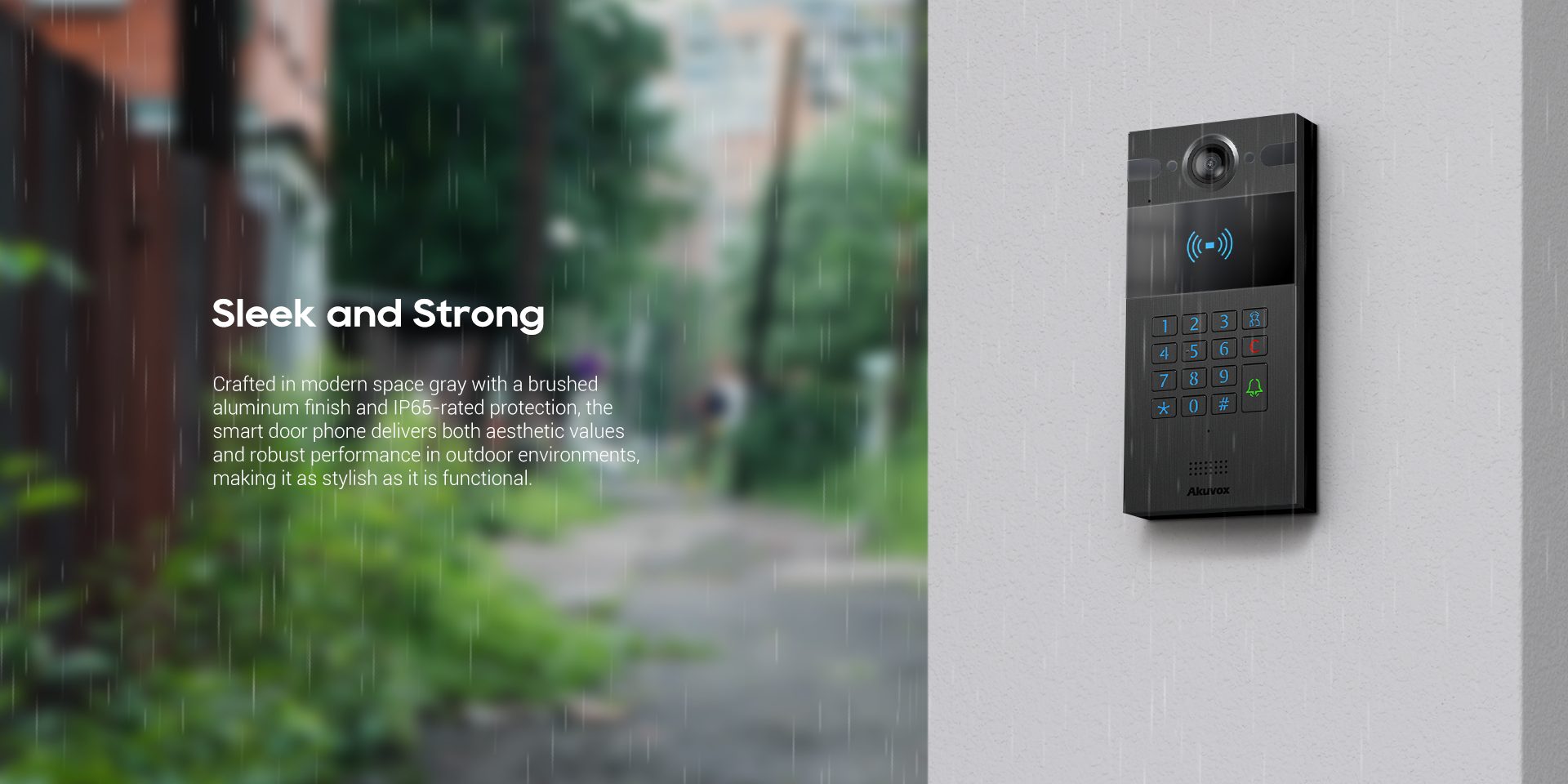

IP Level: IP65

Installation: Flush-mounted or Wall-mounted

Working Humidity: 10-90%

Working Temperature: -30°C ~ +60°C

Storage Temperature: -40°C ~ +70°C
Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711μ

Wideband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator

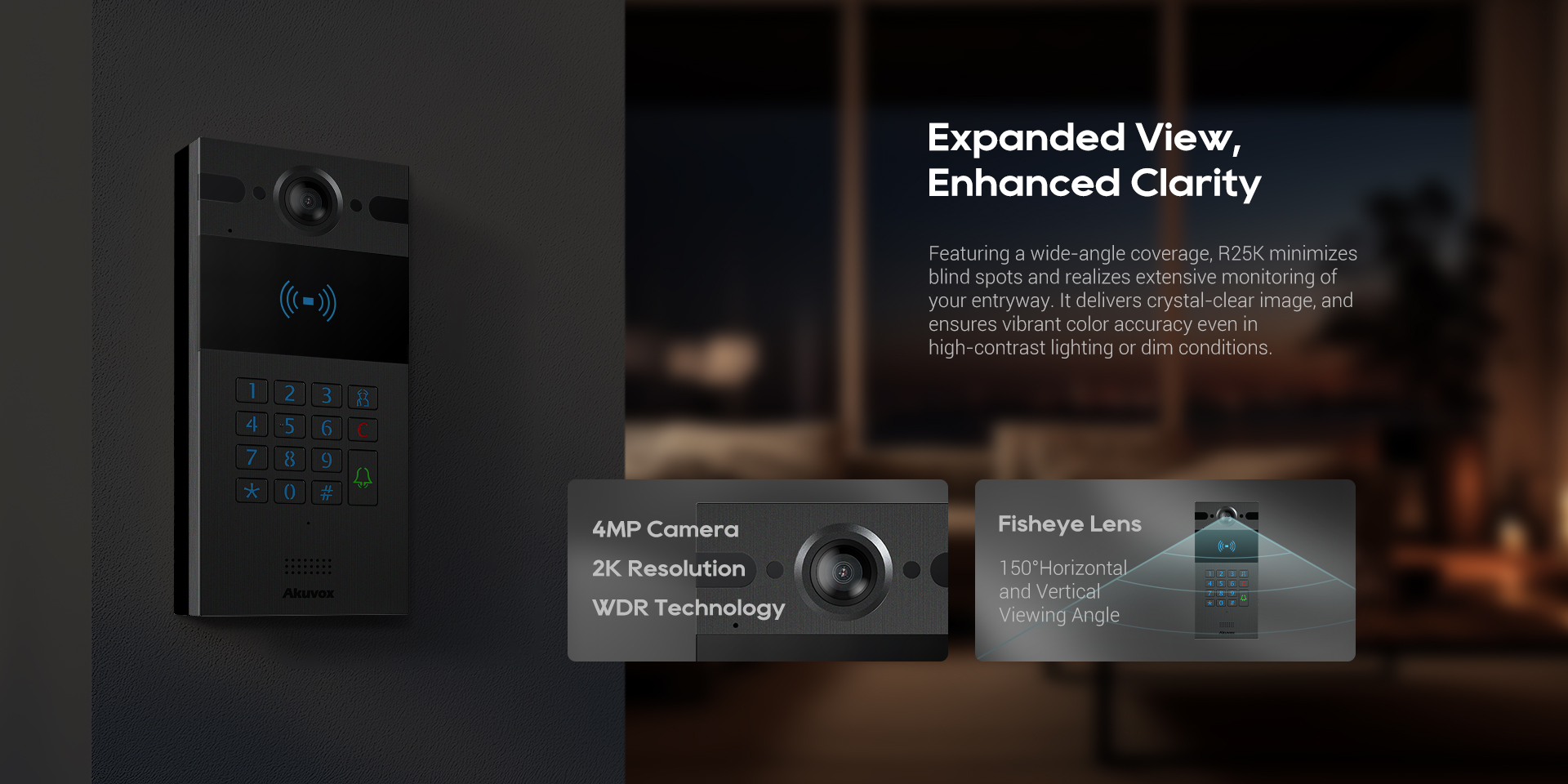

Video

Sensor: 1/3.2", CMOS

Pixels: CIF, VGA, 4CIF, 720p, 1080p, 2K

Video codec: H.264

Video resolution: up to 2000×2000

Max. image transfer rate: 2K-30fps

Viewing angle: 150°(H)/150°(V)

High intensity IR LEDs for picture lighting during dark hours with internal light sensor

Compatible to 3rd-party video components, e.g. NVRs
Networking and Protocol

Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature

Relays controlled individually by DTMF tones

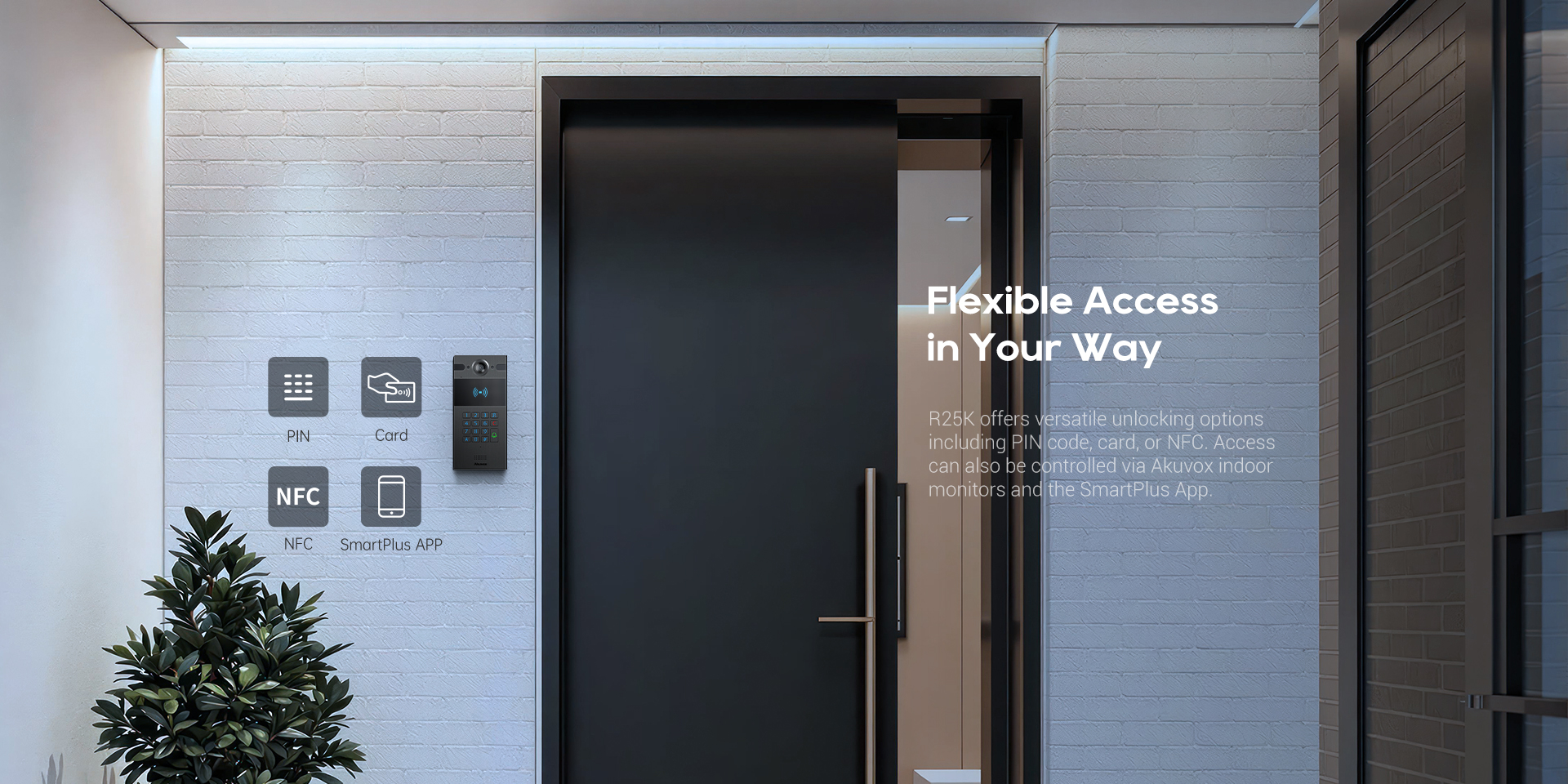

Multi-way unlocking: EM/Mifare Card and PIN

Camera permanently operational

White balance: auto

Minimum illumination: 0.1LUX
Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Entry log export

Access table export / import

Firmware upgrade

System logs (include door access logs)
Capacity

User: 5,000

Card: 25,000

PIN: 5,000
Card Type

EM card

Mifare card

DesFire card（EV1/EV2/EV3）
