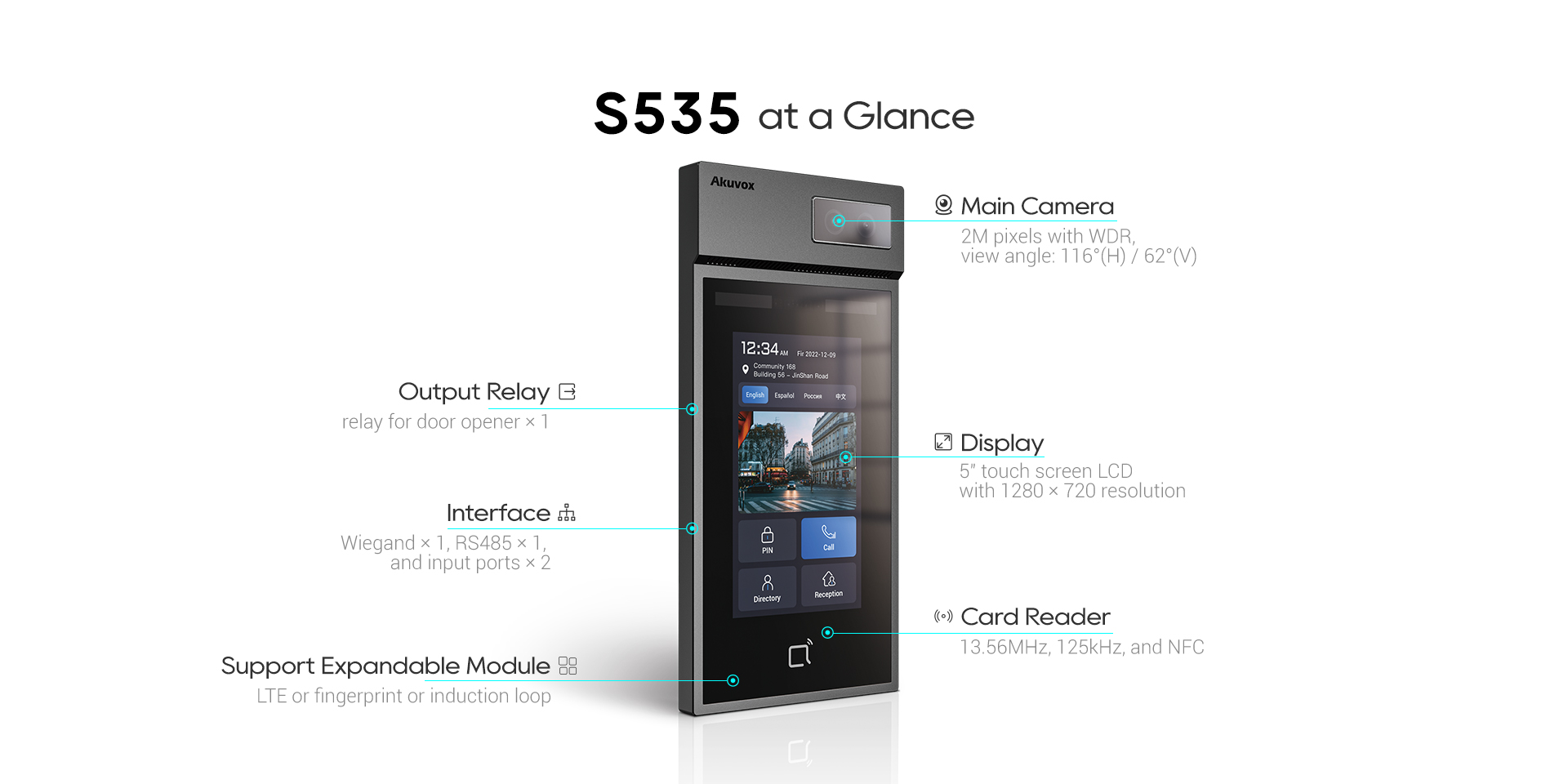

| At a Glance |

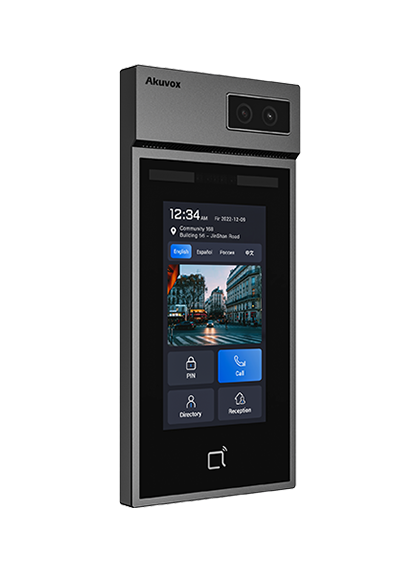

- Aluminum panel with 5inch touchscreen;
Linux operation system;
Wide-angle camera: 116º (H), 62º (V);
Two-way audio communication over IP networks with Echo Cancel feature;
Multi-way access feature including: Face, Card, PIN, BLE & QR code;
Support expandable module: LTE or Fingerprint or Induction Loop;
Flush-mounted & surface-mounted;
Complies with SIP & ONVIF;
|
| Physical & Power |
- Front Panel: Aluminum
Display: 5 Inch IPS LCD
Main Camera: 2M pixels, auto-lighting
Light Sensor: Support
Motion Sensor: Support
Wiegand Port: Support
RS485 Port: Support
RF Card Reader: 13.56MHz, 125kHz & NFC
Relays Out: 1
Inputs: 2
Microphone: 1
Speaker: 1
Reset: 1

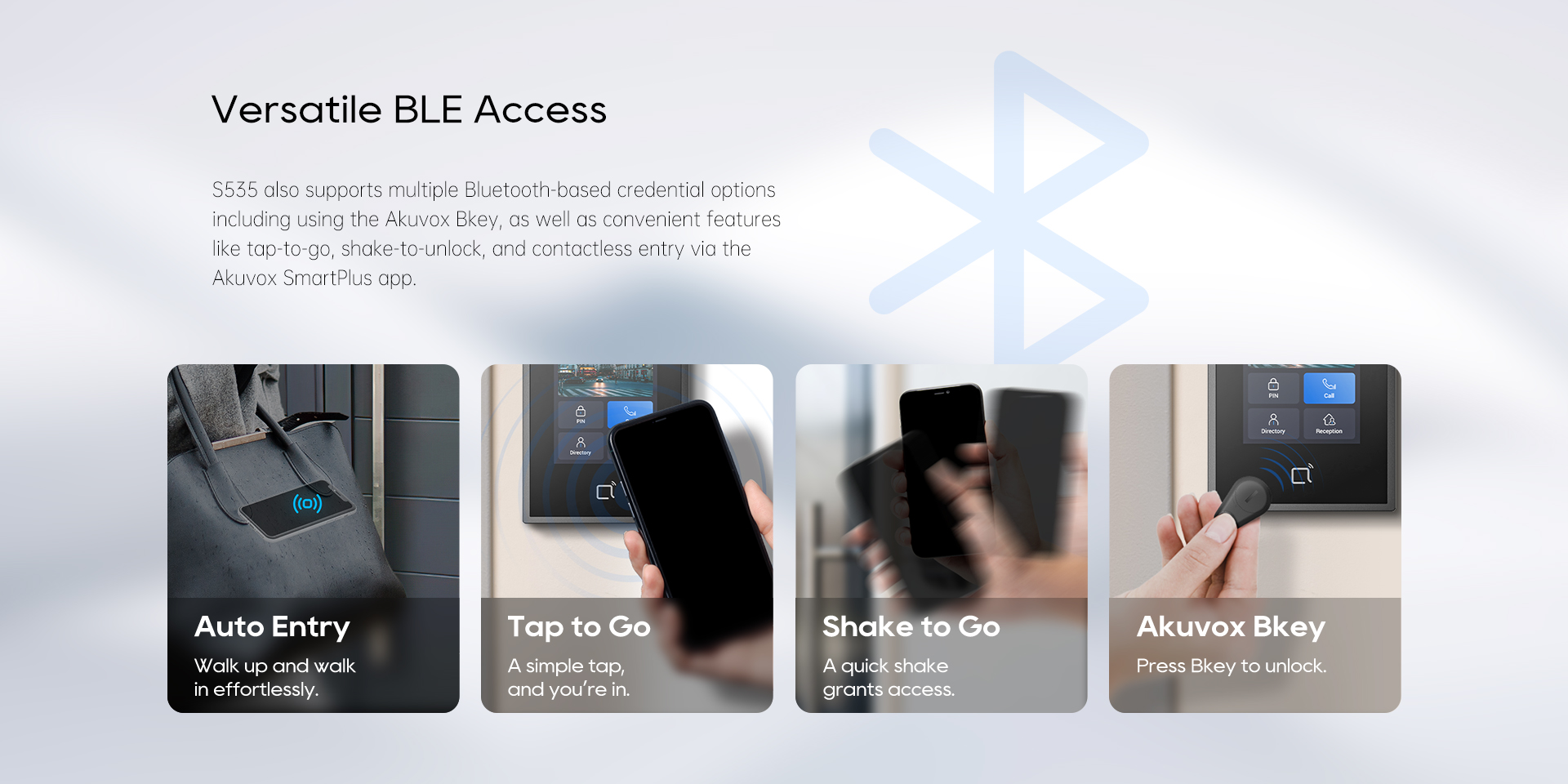

BLE: Support
Tamper Alarm: Support
Expandable Module: Support
Ethernet Port: 1xRJ45, 10/100Mbps adaptive
802.3at Power-over-Ethernet
Power supply: DC 12V / 4A（max.）

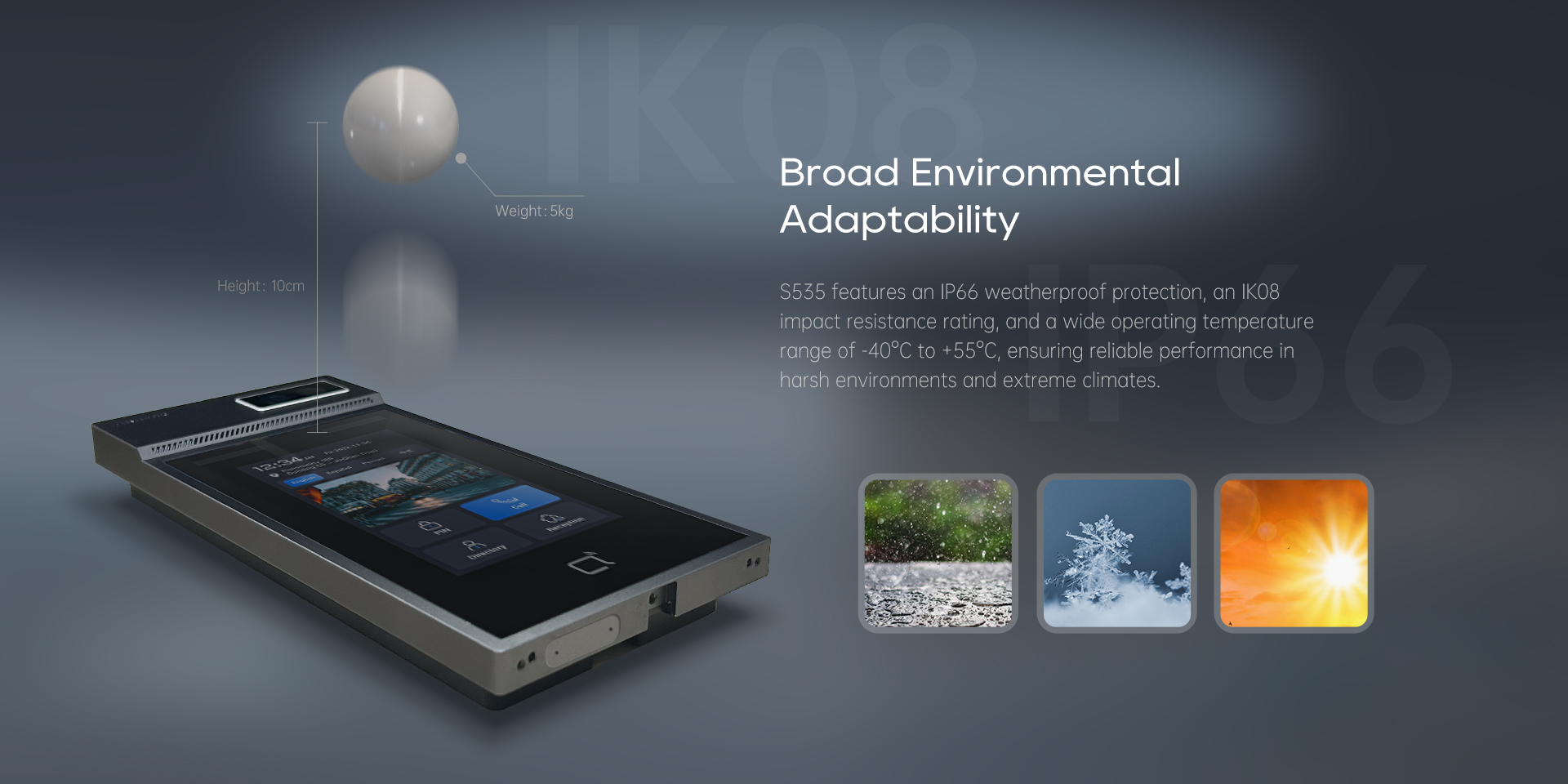

IP Rating: IP66
IK Rating: IK08

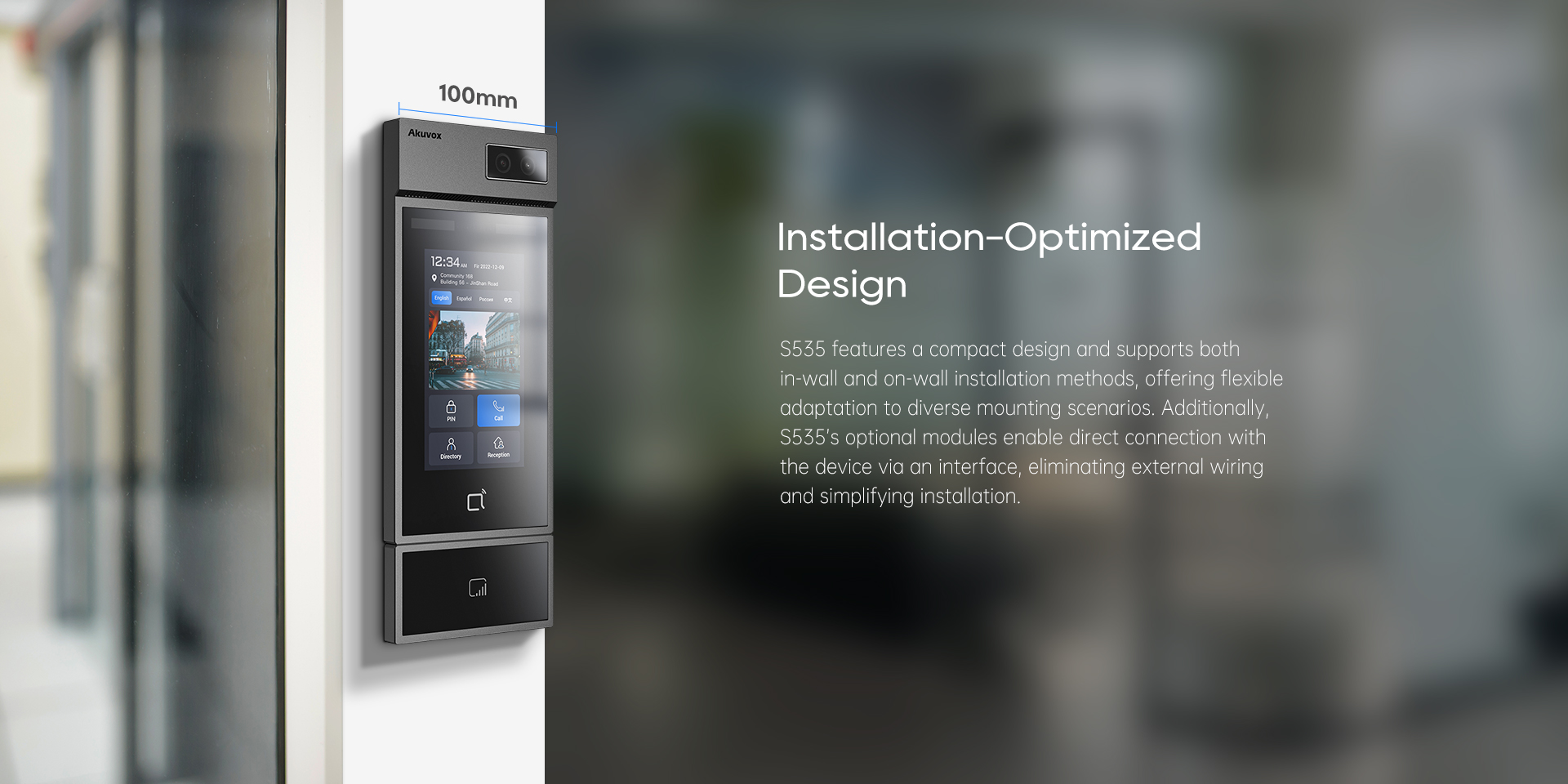

Installation: Flush-mounted & Wall-mounted
Size:210x100x27mm
Working Humidity: 10~90%
Working Temperature: -40°C ~ +55°C
Storage Temperature: -40°C ~ +70°C
|
| Audio |
- SIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codec: G.711a, G.711μ
Wideband audio codec: G.722
DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
|
| Video |
- Sensor: 1/2.9”, CMOS for main camera
Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video codec: H.264
Video technology: HDR
Video resolution: up to 1920×1080
Max. image transfer rate: 1080p – 30fps
Viewing angle: 110°(H) / 62°(V)
Compatible to 3rd-Party-Video components, e.g. NVRs
|
| Networking & Protocol |
- Protocols support: IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
|
| Door Entry Feature |
- Relays controlled individually by DTMF tones

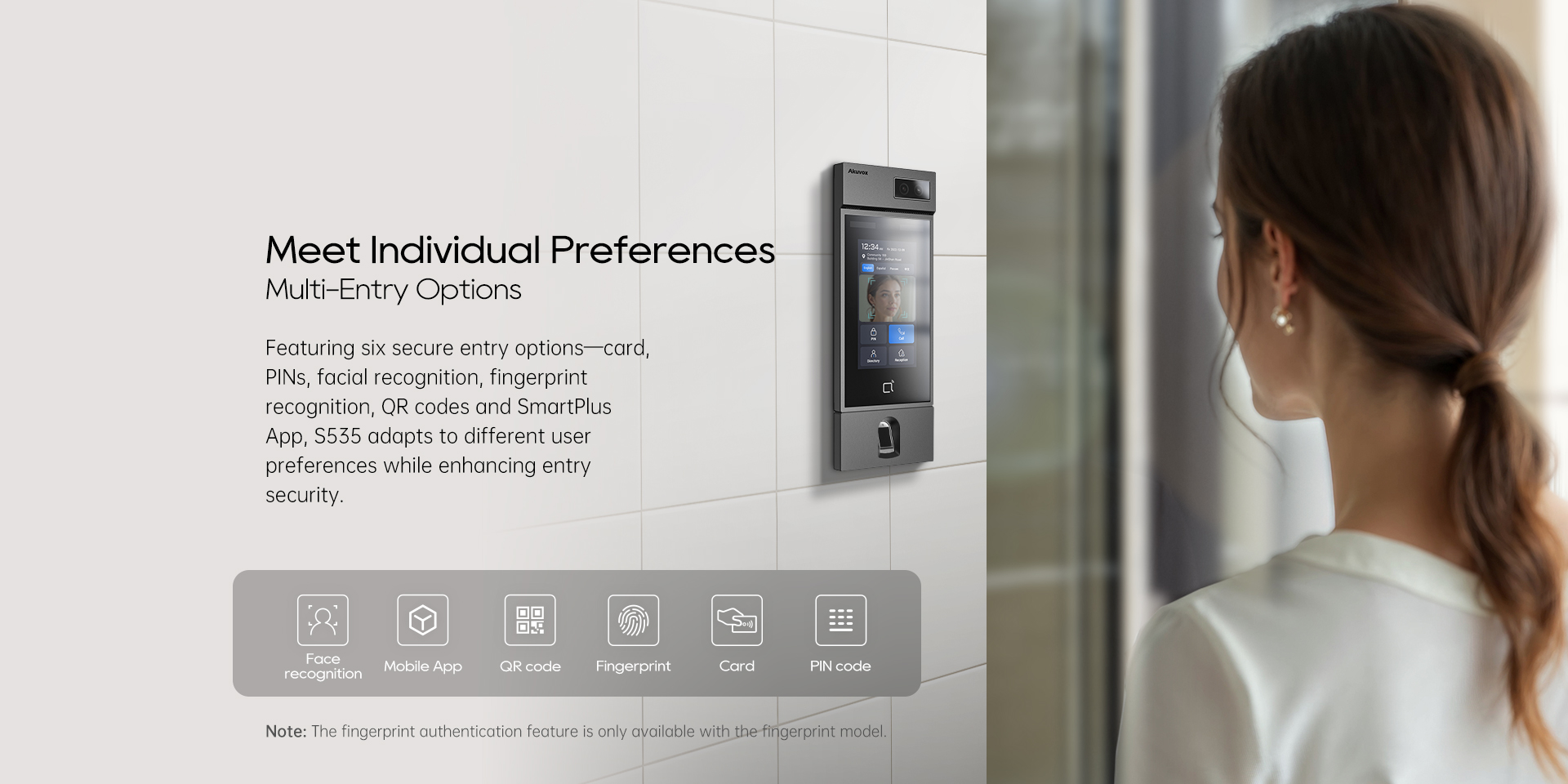

Multi-way Unlock: Face, Card, PIN, BLE & QR code
Camera permanently operational
Auto-night mode with LED illumination
White balance: auto
Minimum illumination: 0.1LUX
|
| Deployment & Maintenance |
- Auto-Provisioning
Web management portal
Web-based packet dump
Configuration backup / restore
Entry log export
Access table export / import
Firmware upgrade
System logs (include door access logs)
|
| Application Scenario |
- Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
|
