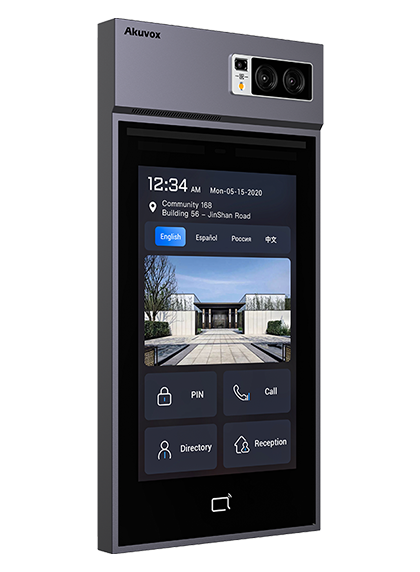

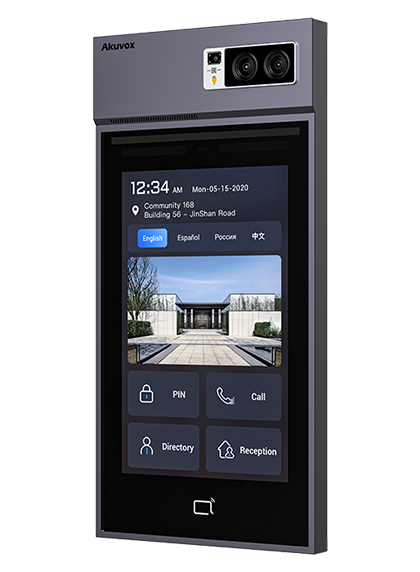

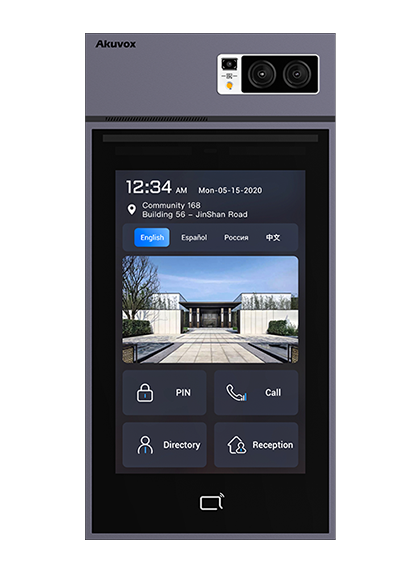

S539 10” Android Door Phone

(1 customer review)

Industry-first Metaverse Android Door Phone

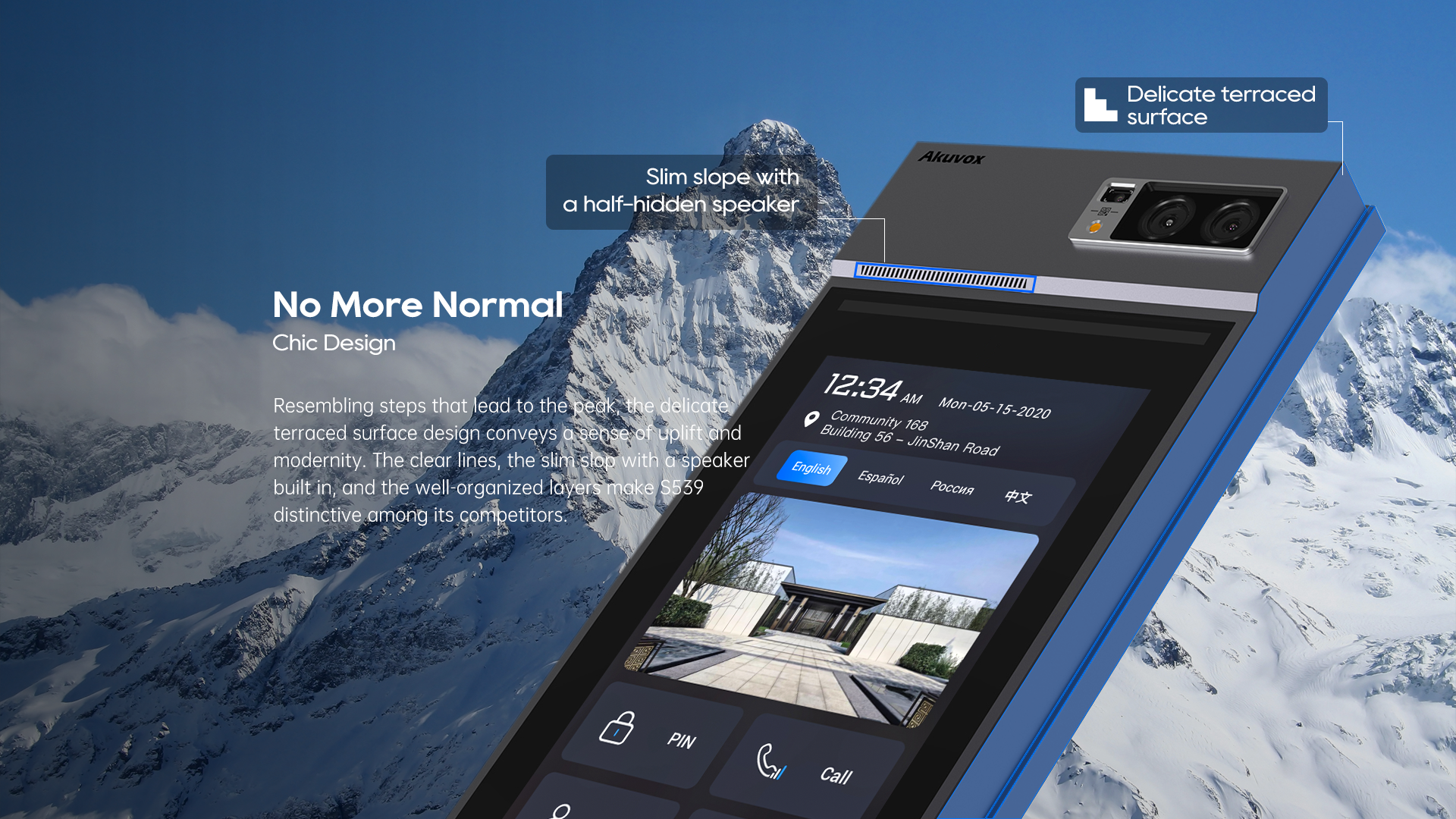

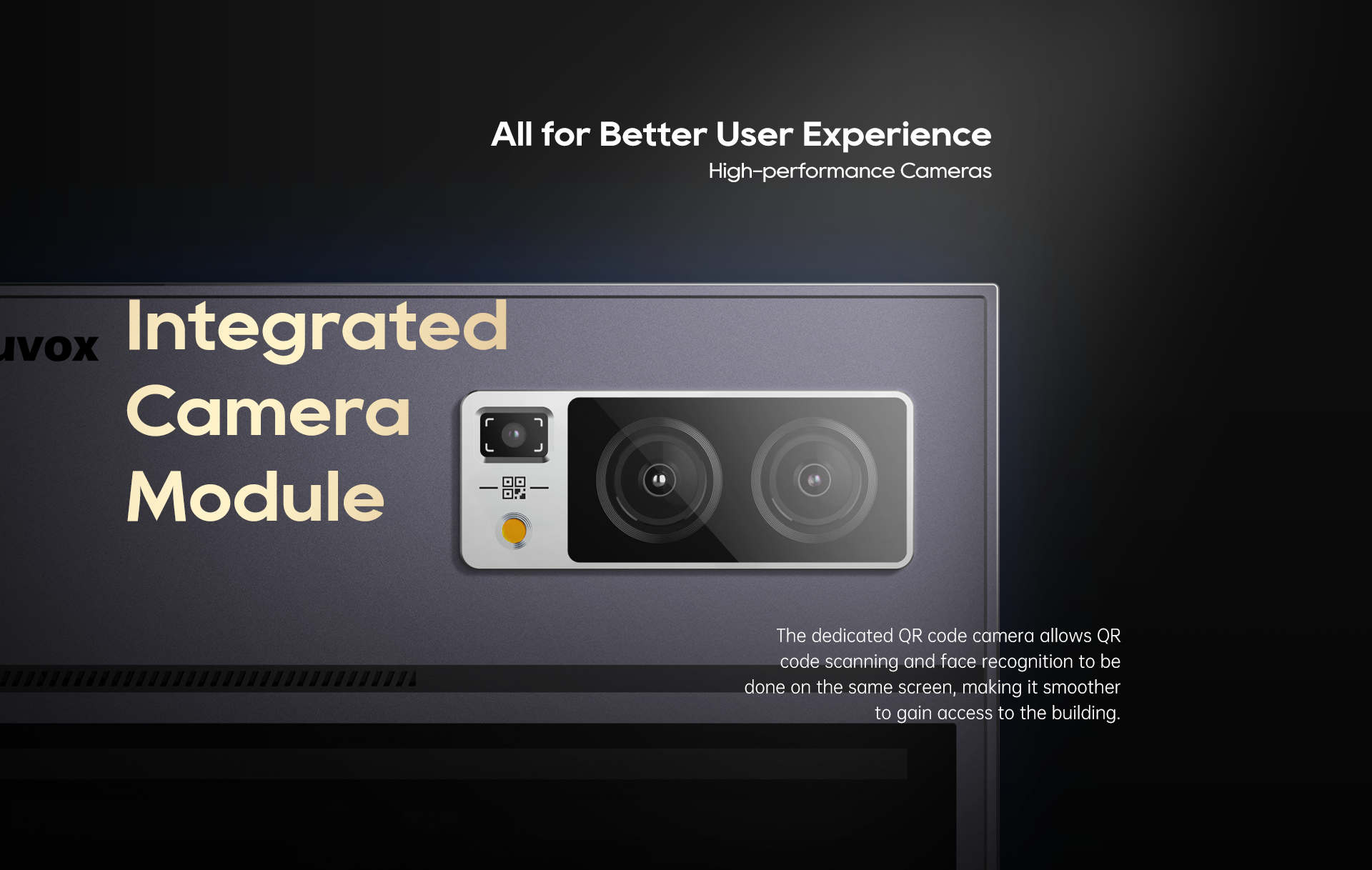

Akuvox S539 video door phone, featuring a terraced surface, a multi-functional camera module, and over 15 access control methods, is innovatively built in with an avatar. More convenient, more secure, and more interactive. The Metaverse-Intercom era is coming with S539.

S539 10'' Android Door Phone
S539 10'' Android Door Phone
S539 <span>10'' Android Door Phone</span> - Image 4

Description

Additional information

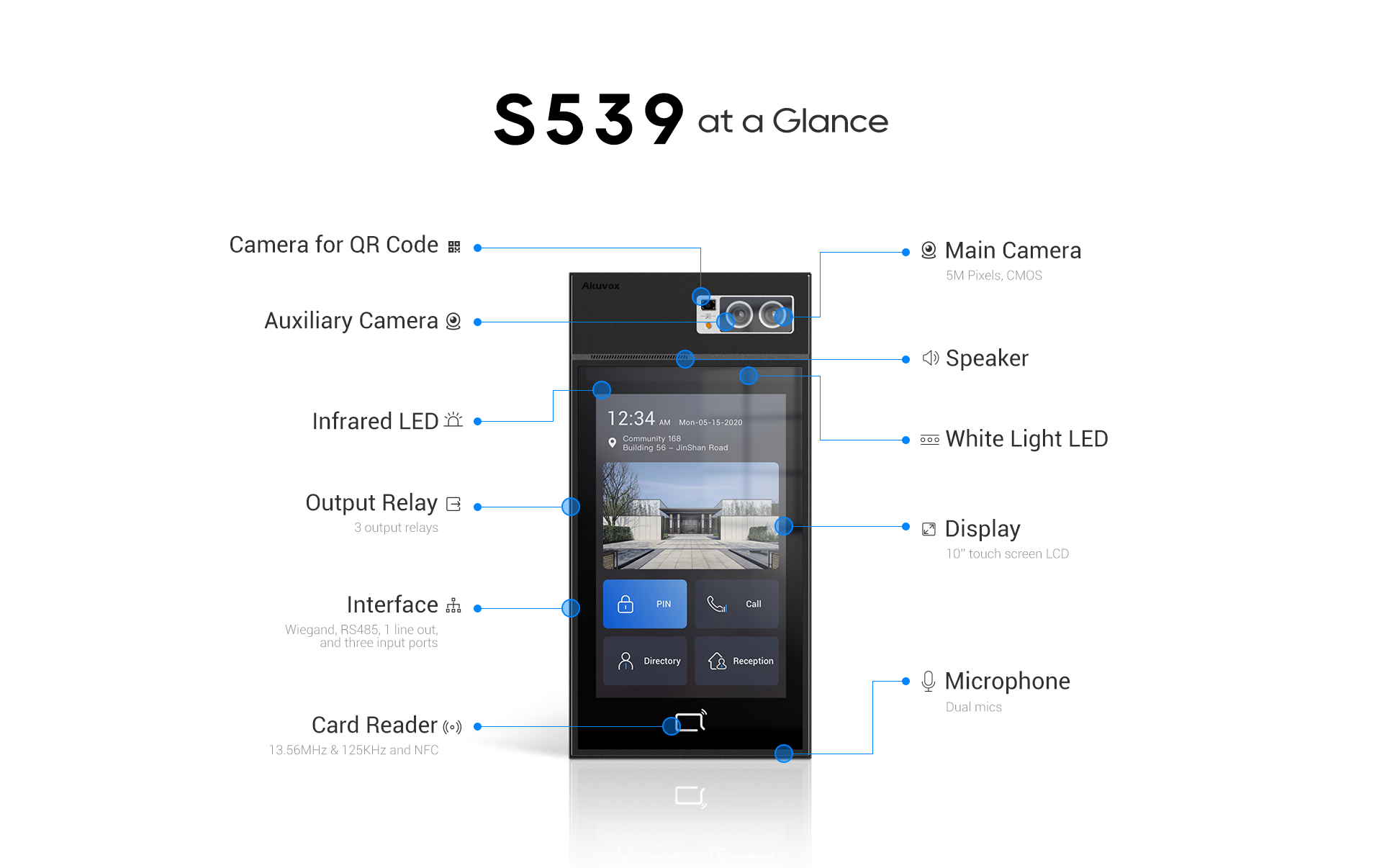

Physical & Power


Front Panel: Aluminum

Display: 10 Inch IPS LCD

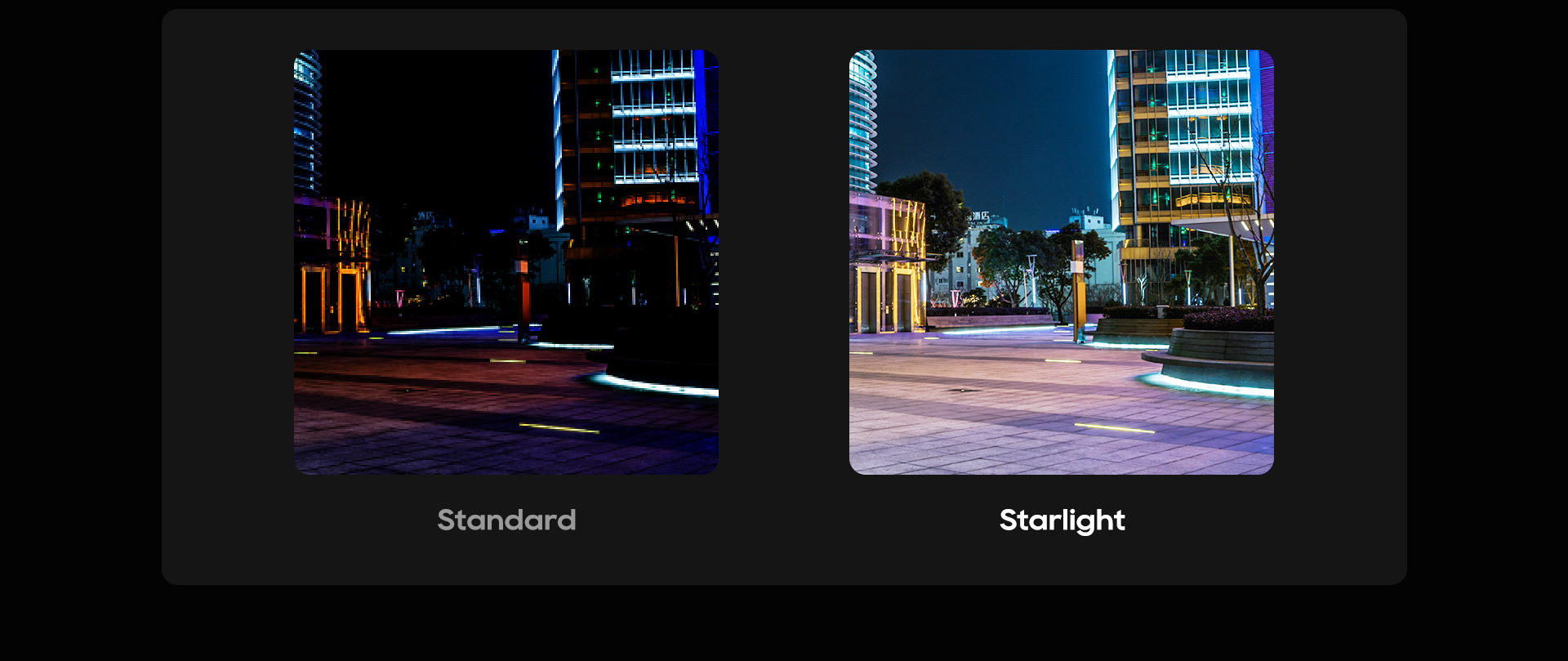

Main Camera: 5M pixels, with starlight

Light Sensor: Support

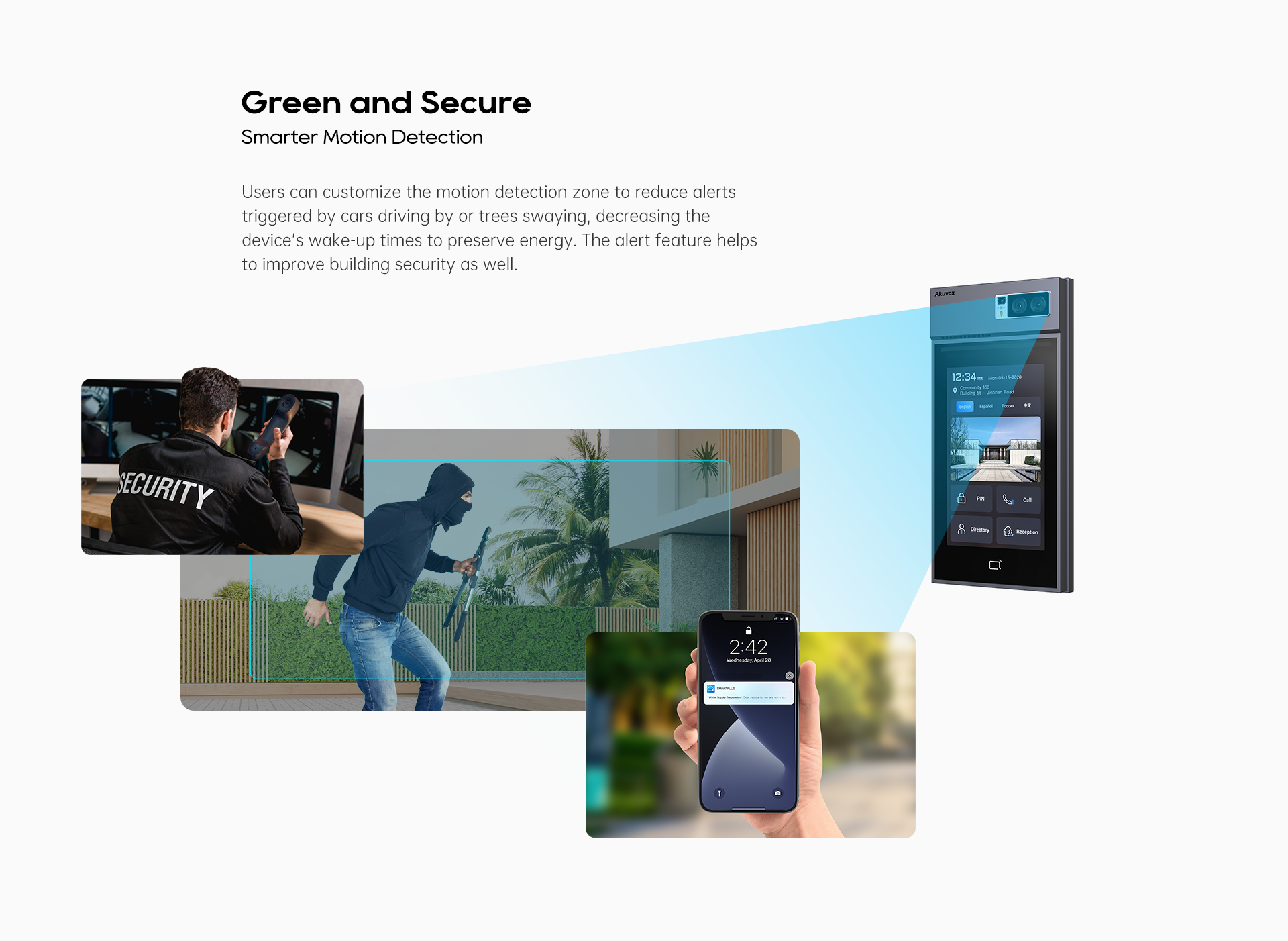

Motion Sensor: Support

ToF Sensor: Support

Wiegand Port: Support

RS485 Port: Support

Line Out: Support

RF Card Reader: 13.56MHz & 125kHz

Relays Out: 3

Inputs: 3

Microphone: 2

Speaker: 2

Reset Button: 1

BLE: Support

Ethernet port: 1xRJ45, 10/100Mbps adaptive

IEEE 802.3at PoE+

Power: DC12V / 3A or DC24V / 1.5A

IP & IK Level: IP66 & IK08

Installation: Flush-mounted & Wall-mounted

Flush-mounted DIM: 363.5×179.8x64mm

Wall-mounted DIM: 367.5x183x35.5mm

Working Humidity: 10~90%

Working Temperature: -30°C ~ +55°C

Storage Temperature: -30°C ~ +70°C
Audio


SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711μ, G.729

Wideband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator
Video


Sensor: 1/2.7”, CMOS for main camera

Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

Video codec: H.264

Video technology: HDR

Video resolution: up to 1920x1080p

Max. image transfer rate: 1080p – 30fps

Viewing angle: 120°(H) / 72°(V)

Compatible to 3rd-Party-Video components, e.g. NVRs
Networking & Protocol


Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature


Android OS for any 3rd party software or customization

Relays controlled individually by DTMF tones

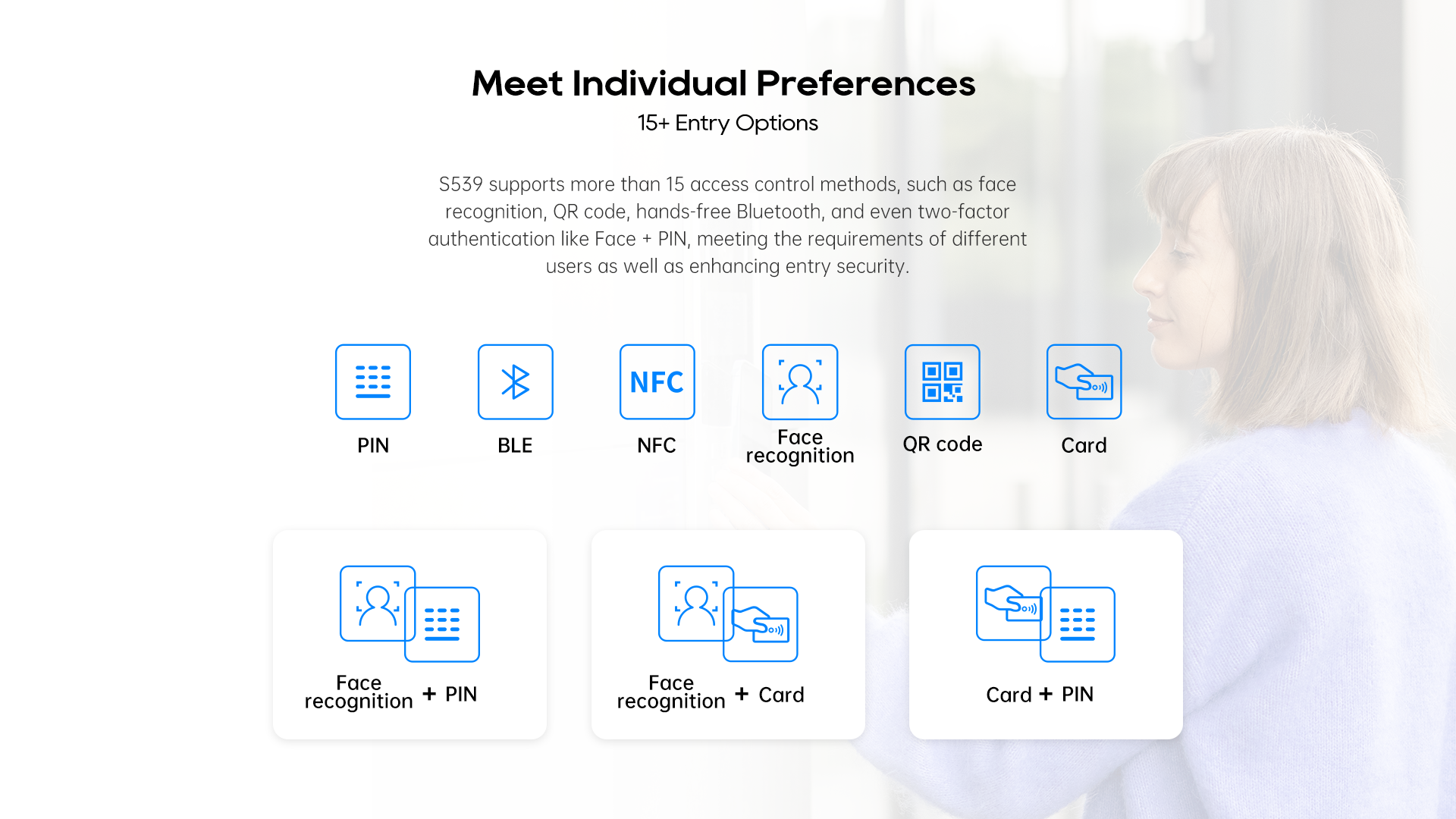

Multi-way Unlock: Face, Card, PIN, BLE & QR code

Camera permanently operational

Auto-night mode with LED illumination

White balance: auto

Minimum illumination: 0.1LUX
Deployment & Maintenance


Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Entry log export

Access table export / import

Firmware upgrade

System logs (include door access logs)
Application Scenario


Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities, and industrial buildings
