X912 Vandal-resistant Video Door Phone

Vandal-resistant Door Phone for High-end Buildings

Offering top-of-the-line features, Akuvox X912 is targeted at high-end residential and commercial projects. With a compact size, it is perfect for buildings with limited installation space.

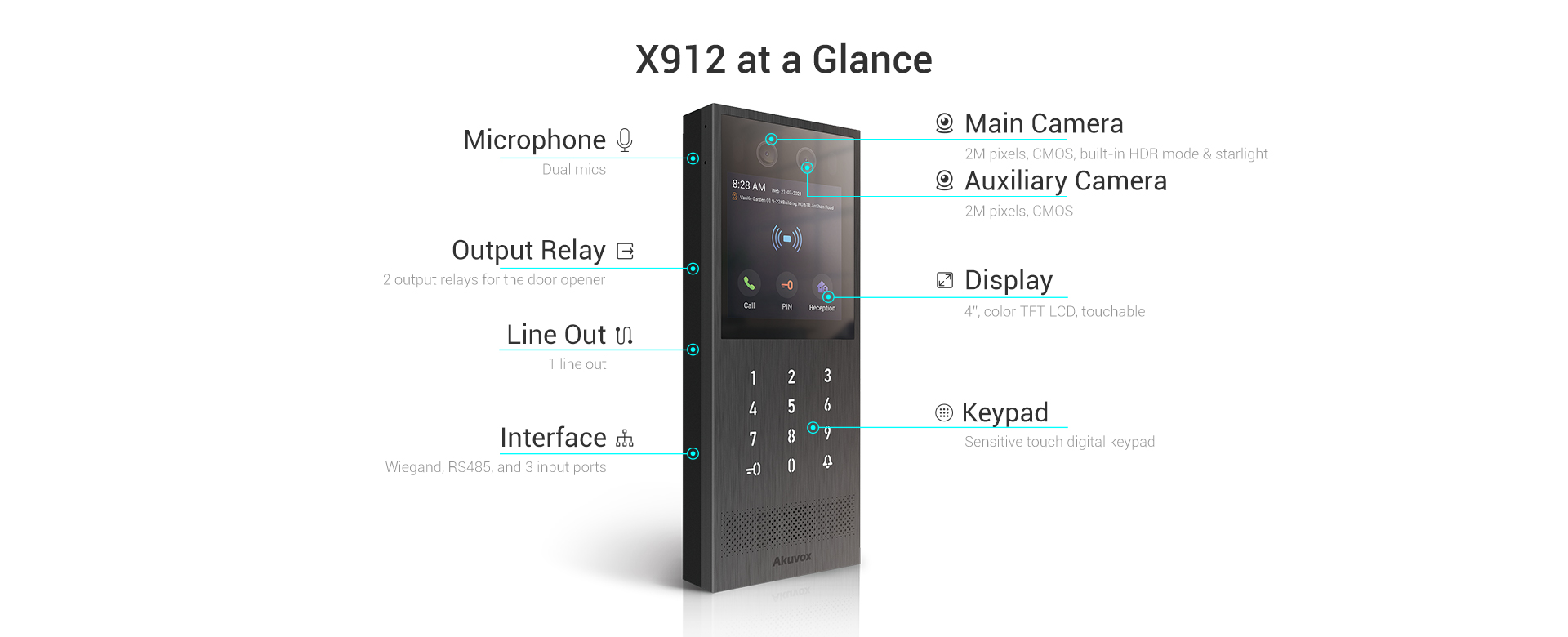

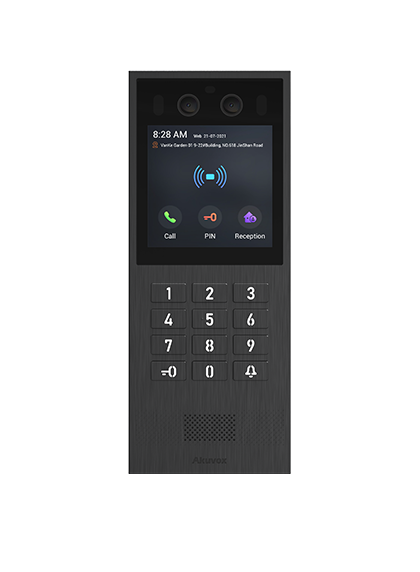

X912

Description





Additional information

Physical & Power

Front panel: Stainless steel

Display: 4 Inch, color TFT LCD, touchable

Camera: 2M pixels

Numeric keypad

Gesture detection sensor: Support

Wiegand port: Support

RS485 port: Support

RF card reader: 13.56MHz & 125kHz, NFC

Relays out: 2

Inputs: 3

BLE：Support

Line out: 1

Microphone: -42dB

Speaker: 8Ω / 2W

Power out: 12V/1A（Max.）

Ethernet port: RJ45, 10/100Mbps adaptive

802.3at Power-over-Ethernet

12V DC connector (if not using PoE+)

IP & IK rate: IP65 & IK10

Installation: Wall-mounted

Dimension: 234×94.5x34mm

Working Humidity: 10~90%

Working Temperature: -20°C ~ +60°C

Storage Temperature: -40°C ~ +70°C
Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711μ, G.729

Broadband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator
Video

Sensor: 1/2.8”, CMOS for main camera

Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

Video codec: H.264

Video technology: HDR

Video resolution: up to 1920x1080p

Max. image transfer rate: 1080p – 30fps

Viewing angle: 125°(H) / 65°(V)

Compatible to 3rd-Party-Video components, e.g. NVRs
Networking & Protocol

Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Door Entry Feature

Relays controlled individually by DTMF tones

Multi-way Unlock: Face, IC/ID Card, PIN and BLE

Camera permanently operational

White balance: auto

Minimum illumination: 0.1LUX
Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Entry log export

Access table export / import

Firmware upgrade

System logs (include door access logs)
Application Scenario

Provides resident / visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings
