| Perfect Choice for Daily Life |

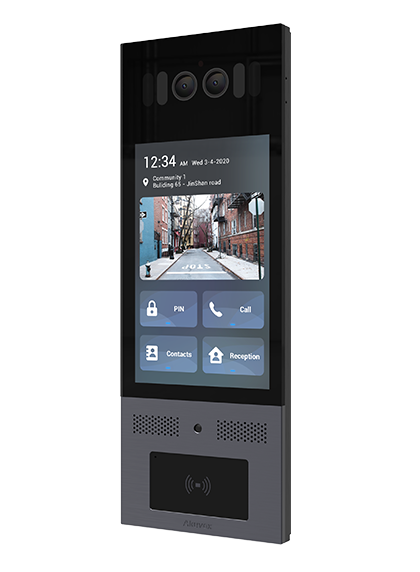

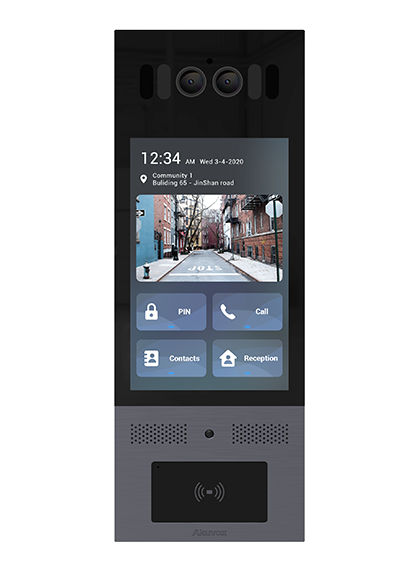

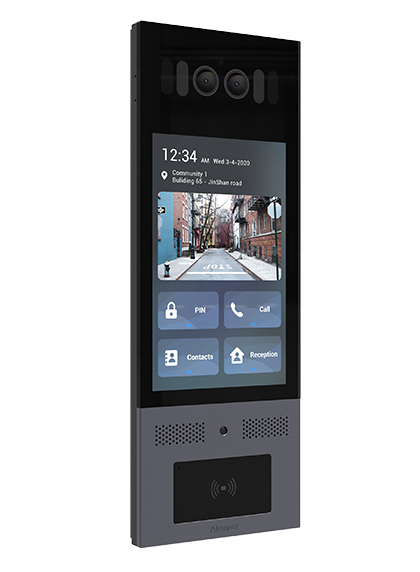

- Akuvox’s X915S is designed to provide a visually stunning and intuitive user-experience. It brings a number of innovative new features to provide a fully customizable solution for occupant and visitor access control in condominiums, apartment buildings, office buildings, gated communities and industrial buildings.
|

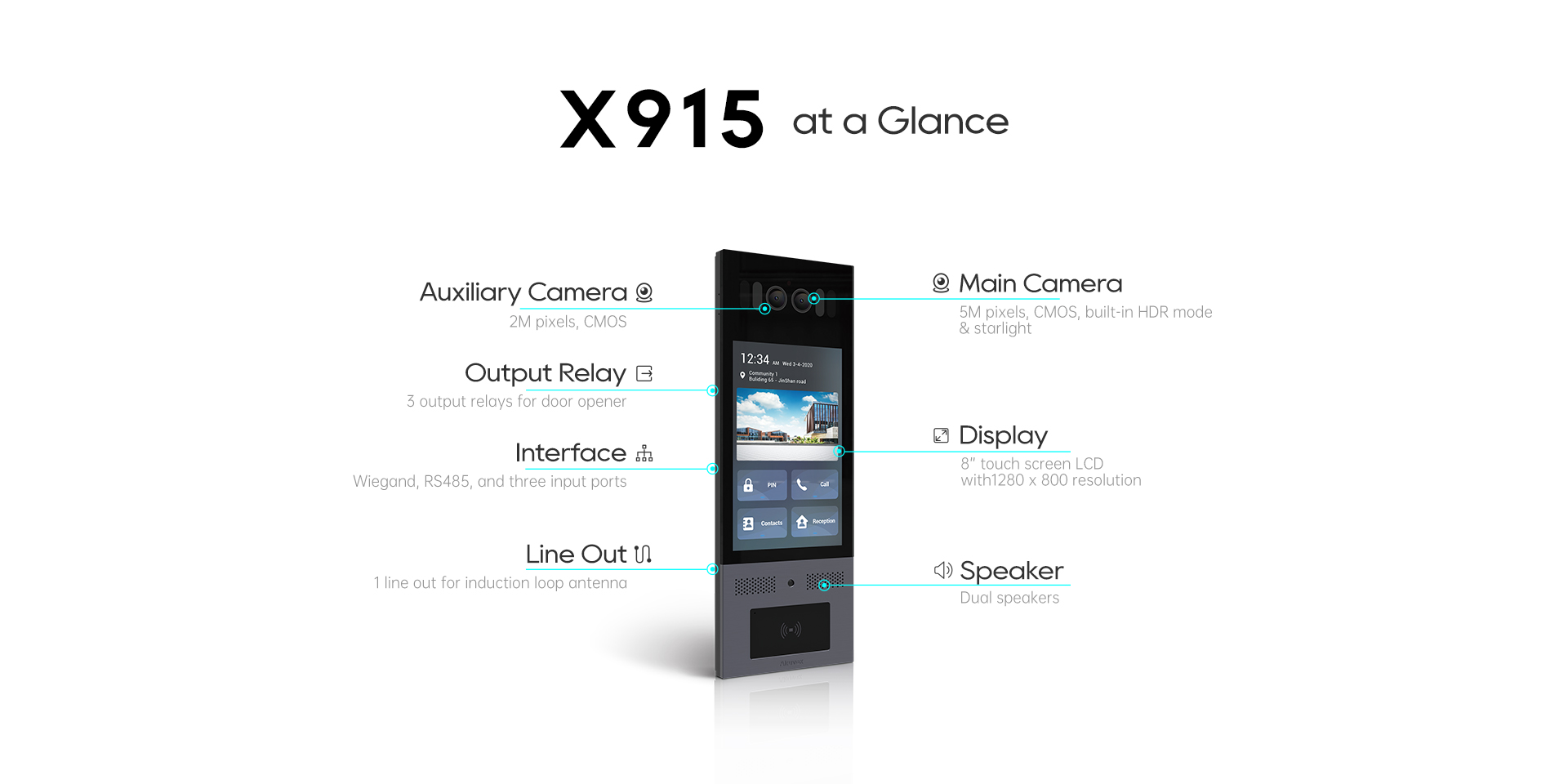

| At a Glance |
- Main camera features a built-in HDR mode to tackle a variety of high-contrast scenes;
Face verification accuracy >99% ; face comparison speed <0.6s per person; false recognition rate<0.1%;
Intuitive interface with color touch display for superior resident and visitor usability;
8” fully-color touch display provides ultra-wide viewing angles;
Presents information and user navigation options unique to your business;
Supports SIP to provide reliable two-way voice & one-way video communication;
Complies with ONVIF standard for easy integration with any network surveillance system;
|
| Physical & Power |
- Front Panel: 316 grade stainless steel
RAM / ROM: 2GB / 16GB
Display: 8 Inch IPS LCD
Main Camera: 2M pixels, with starlight
Light Sensor: Support
Infrared Sensor: Support
Wiegand Port: Support
RS485 Port: Support
Line Out: Support

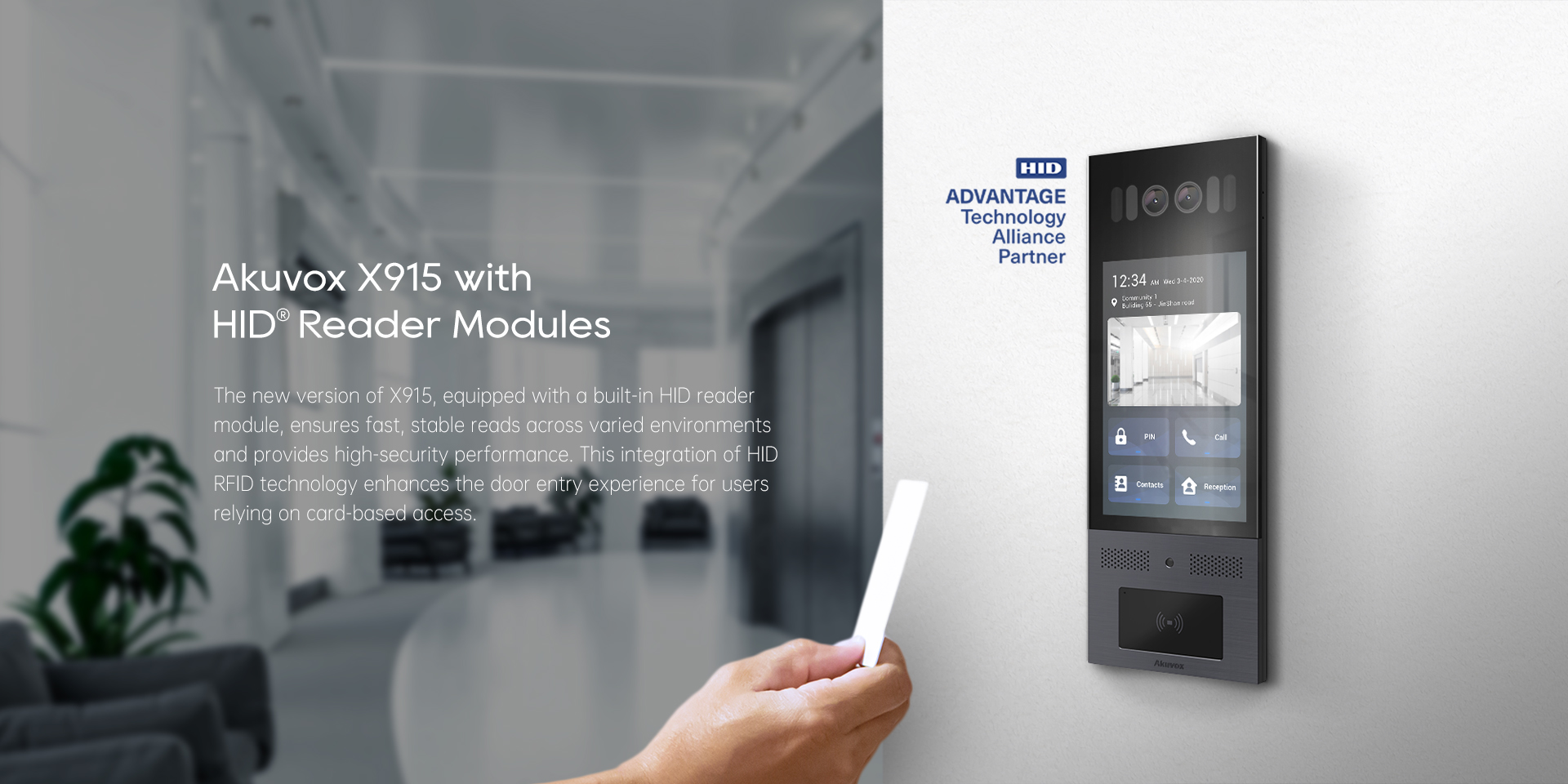

RF Card Reader: 13.56MHz & 125kHz
Relays Out: 3
Inputs: 3
Microphone: 2, -42dB
Speaker: 2, 8Ω / 2W
Reset Button: 1
Ethernet port: 1xRJ45, 10/100Mbps adaptive
IEEE 802.3at PoE+
12~24V DC connector (if not using PoE+)
IP & IK Level：IP65 & IK10
Installation: Flush-mounted & Wall-mounted
Flush-mounted DIM: 350x130x53.9mm
Wall-mounted DIM: 350x130x41.6mm
Working Humidity: 10~90%
Working Temperature: -30°C ~ +60°C
Storage Temperature: -30°C ~ +70°C
|
| Audio |
- SIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codec: G.711a, G.711μ, G.729
Broadband audio codec: G.722
DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator
|
| Video |
- Sensor: 1/2.8”, CMOS for main camera
Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video codec: H.264
Video technology: HDR
Video resolution: up to 1920x1080p
Max. image transfer rate: 1080p – 30fps
Viewing angle: 115°(H) / 63°(V)
Compatible to 3rd-Party-Video components,
e.g. NVRs
|
| Networking & Protocol |
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
|
| Door Entry Feature |
- Android OS for any 3rd party software or customization
Relays controlled individually by DTMF tones
Multi-way Unlock: Face, Card, PIN, BLE & QR code
Camera permanently operational
Auto-night mode with LED illumination
White balance: auto
Minimum illumination: 0.1LUX
|
| Deployment & Maintenance |
- Auto-Provisioning
Web management portal
Web-based packet dump
Configuration backup / restore
Entry log export
Access table export / import
Firmware upgrade
System logs (include door access logs)
|
