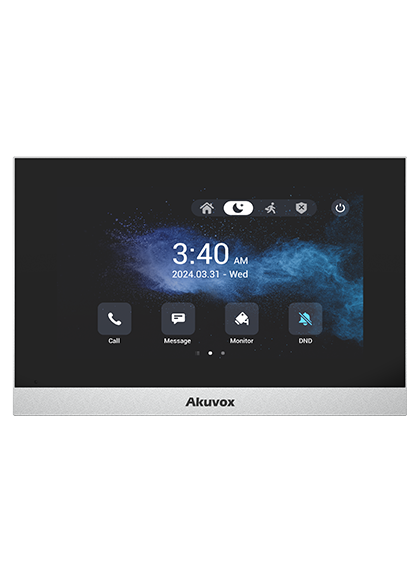

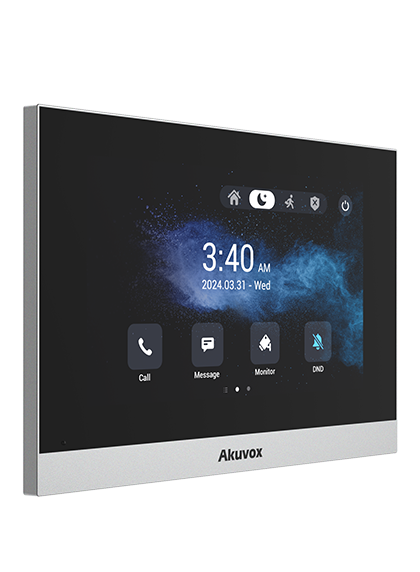

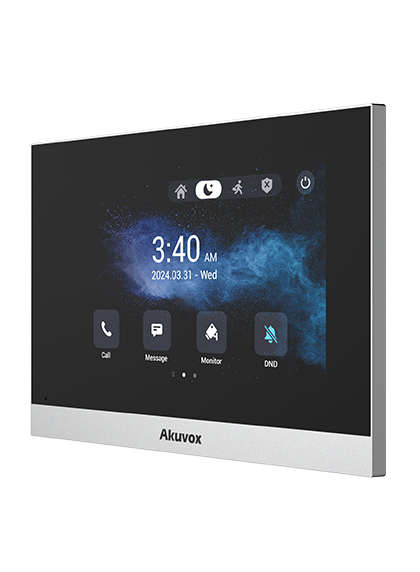

C316 7-inch Android Indoor Monitor

Elevate Home Living

Akuvox C316 is a 7-inch SIP indoor monitor powered by Android 12 OS. Designed for the mid-range multi-residential housing market, it offers a host of smart living features.

android

C316 <span>7-inch Android Indoor Monitor</span> - Image 2
C316 <span>7-inch Android Indoor Monitor</span> - Image 3
C316 <span>7-inch Android Indoor Monitor</span> - Image 4

Description

Additional information

Physical & Power

Front panel: Plastic

OS：Android 12

RAM / ROM: 2GB / 8GB

Display: 7 Inch TFT LCD

Screen: 7 Inch capacitive touch screen

RS485 port: Support

Relay out: 1

Bell in: 1

I/O: 8

Microphone: -58dB

Speaker: 4Ω / 2W

Ethernet ports: 2xRJ45, 10/100Mbps adaptive

802.3af Power-over-Ethernet

12V DC connector (if not using PoE)

Installation: Wall-mounted & Desktop

Dimension: 200.2×132.2×27.2mm

Working Humidity: 10~90%

Working Temperature: -10°C ~ +45°C

Storage Temperature: -20°C ~ +70°C
Touch Screen Display

Display Mode: Normally white, Transmissive

LCD Size: 7inch (Diagonal)

Resolution: 1024×600

Contrast ratio: 800:1

Luminance: 270 cd/m²

Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower

Touch Screen: Projected capacitive
Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711μ, G.729

Broadband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator

Automatic Gain Control
Video


Streaming formats: H.263 & H.264
Networking & Protocol


Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Firmware upgrade

System logs (include door access logs)
Voice Assistant

Voice pickup distance up to 5 meters

Voice recognition accuracy up to 95%

Privacy protection with native voice data

Support English
Application Scenario


Villas

Apartment complexes

Home automation systems

Modern interiors
